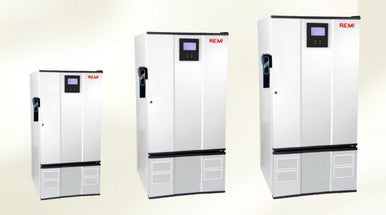

ULT-185 Ultra Low Freezer – -86°C Cryopreservation Storage Solution
The ULT-185 Ultra Low Freezer 185L is a high-performance cryopreservation solution engineered for precise ultra-low temperature storage down to -86°C. Designed for pharmaceutical, biotechnology, and research laboratories, it features a microprocessor-based control system with PT-100 sensor for exceptional temperature stability and reliability.
With a dual refrigeration system for rapid pull-down and high-density CFC-free insulation, the freezer minimizes temperature loss and energy consumption. The integrated 4-inch LCD display, advanced alarm system, and 8-hour battery backup ensure continuous monitoring and protection of sensitive samples. Built with SS 304 internal construction and intelligent safety features, the ULT-185 guarantees long-term durability, compliance, and dependable performance for critical storage applications.
Technical Specifications
| Feature | Details |
|---|---|
| Capacity | 185 Liters |
| Temperature Range | -45°C to -86°C |
| Temperature Control | Microprocessor with PT-100 sensor |
| Display | 4" LCD |
| Internal Dimensions | 510 × 510 × 730 mm |
| External Dimensions | 820 × 987 × 1560 mm |
| Internal Material | SS 304 (AISI Grade) |
| External Material | Powder Coated CRCA Steel |
| Insulation | CFC-free polyurethane foam |
| Noise Level | < 65 dB(A) |
| Battery Backup | 8 Hours (Alarm & Recorder) |
| No. of Trays | 3 |
| Internal Doors | 2 |
| Power Supply | 220-240V, 50Hz, Single Phase |
| Alarms | Temp High/Low, Power Failure, Battery Low, Door Open |
Core Features & Benefits
- Ultra-Low Temperature Stability Maintain consistent storage conditions down to -86°C with microprocessor precision, protecting sensitive biological samples and reagents.
- Dual Refrigeration System Ensures faster cooling and efficient temperature recovery, reducing risk during door openings and improving sample safety.
- Advanced Alarm Protection Audio-visual alerts for temperature, power failure, battery status, and door opening safeguard critical materials 24/7.
- High-Efficiency Insulation Thick CFC-free polyurethane insulation minimizes temperature loss and reduces energy consumption.
- Data Monitoring System Built-in data acquisition stores 24-hour records and enables temperature tracking for compliance and audits.
- Robust Laboratory Build SS 304 internal chamber and CRCA steel exterior ensure corrosion resistance and long-term durability.
Frequently Asked Questions
What is the temperature range of the ULT-185 Ultra Low Freezer?
The ULT-185 Ultra Low Freezer operates within a temperature range of -45°C to -86°C, making it ideal for cryopreservation, biological sample storage, and pharmaceutical applications requiring stable ultra-low temperature conditions with precise microprocessor-based control.
What is the storage capacity of this ultra low freezer?
The ULT-185 freezer offers a total storage capacity of 185 liters, providing ample space for laboratory samples, vaccines, and research materials while maintaining uniform ultra-low temperature conditions for safe and reliable long-term preservation.
Does the freezer have a backup system during power failure?
Yes, the ULT-185 includes an 8-hour rechargeable battery backup that supports alarm systems and temperature recording, ensuring continuous monitoring and protection of stored samples during power interruptions.
What safety features are included in the ULT-185 freezer?
The freezer includes advanced safety features such as audio-visual alarms for temperature deviation, power failure, battery low status, and door open alerts, ensuring maximum protection and compliance for critical laboratory storage applications.
What materials are used in the construction of the freezer?
The ULT-185 freezer features an SS 304 stainless steel internal chamber for corrosion resistance and hygiene, along with a powder-coated CRCA steel external body for durability, ensuring long-lasting performance in demanding laboratory environments.
