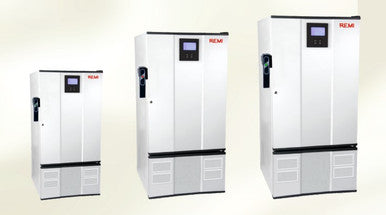

ULT-360 Ultra Low Freezer – 360L Cryopreservation Solution
The ULT-360 Ultra Low Temperature Freezer is engineered for advanced cryopreservation and laboratory storage, offering precise temperature control from -45°C to -86°C. Designed for pharmaceutical, biotechnology, and research laboratories, it ensures reliable storage of sensitive biological materials.
Equipped with a microprocessor controller with PT-100 sensor and a dual refrigeration system, this ultra low freezer delivers fast temperature pull-down and exceptional stability. The high-density CFC-free insulation minimizes thermal loss, ensuring energy efficiency and consistent performance.
With a 360-litre capacity, advanced alarm system, data logging capabilities, and smart door design, the ULT-360 is ideal for storing vaccines, enzymes, DNA/RNA samples, and critical research materials.
Technical Specifications
| Feature | Details |
|---|---|
| Capacity | 360 Litres |
| Temperature Range | -45°C to -86°C |
| Controller | Microprocessor with PT-100 Sensor |
| Display | 4" LCD |
| Internal Dimensions | 700 x 510 x 1000 mm |
| External Dimensions | 1010 x 987 x 1830 mm |
| Internal Material | SS 304 |
| External Material | Powder Coated CRCA Steel |
| Insulation | CFC Free Polyurethane Foam |
| Noise Level | < 65 dB(A) |
| Battery Backup | 8 Hours |
| No. of Trays | 6 |
| No. of Internal Doors | 4 |
| Power Supply | 220-240V, 50Hz, Single Phase |
Core Features & Benefits
- Ultra-Low Temperature Precision – Maintains stable temperatures down to -86°C for sensitive samples.
- Dual Refrigeration System – Faster cooling and improved temperature recovery.
- Advanced Safety Alarms – Alerts for temperature deviation, power failure, and door open.
- Energy Efficient Insulation – Thick polyurethane insulation minimizes heat loss.
- Data Logging System – Records temperature history and displays histogram.
- Smart Handle with LED Indicator – Visual confirmation of door status.
Frequently Asked Questions
What is the temperature range of the ULT-360 ultra low freezer?
The ULT-360 ultra low freezer operates within a temperature range of -45°C to -86°C, making it ideal for cryopreservation and long-term storage of biological samples, vaccines, and sensitive laboratory materials requiring stable ultra-low temperature conditions.
What is the storage capacity of the ULT-360 freezer?
The ULT-360 ultra low temperature freezer offers a large internal storage capacity of 360 litres, providing ample space for laboratory samples and pharmaceutical materials while maintaining consistent temperature uniformity.
What are ultra low freezers used for?
Ultra low temperature freezers are used in laboratories and research facilities for storing vaccines, biological samples, enzymes, DNA/RNA, and other temperature-sensitive materials that require stable conditions below -40°C.
Does the ULT-360 include alarms and battery backup?
Yes, it includes audio-visual alarms for temperature deviation, power failure, low battery, and door open conditions, along with an 8-hour battery backup for monitoring during power interruptions.
Does it support data logging?
Yes, the freezer includes a data acquisition system that records 24-hour temperature history and supports optional software for analysis and remote monitoring.
