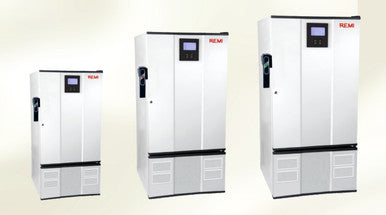

ULT-90 Ultra Low Freezer 90L – Precision Cryogenic Storage
The ULT-90 Ultra Low Freezer 90L is a high-performance ultra low temperature freezer engineered for reliable storage of sensitive biological samples at temperatures as low as -86°C. Designed for laboratories, research centers, and pharmaceutical applications, this freezer ensures stable cryopreservation with advanced microprocessor control and dual refrigeration technology.
Its efficient insulation system, combined with a PT-100 sensor-based temperature control, guarantees minimal temperature fluctuation and maximum energy efficiency. The unit includes a 4" LCD display, intelligent alarm system, and 8-hour battery backup, making it ideal for critical storage of vaccines, biological samples, and reagents.
With a compact 90-litre capacity, robust stainless steel interior, and advanced safety features, the ULT-90 freezer delivers unmatched performance, reliability, and data security for modern laboratories.

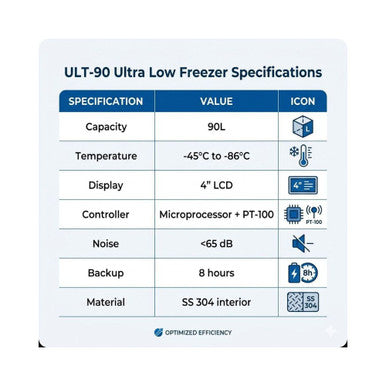

Technical Specifications
| Feature | Details |
|---|---|
| Capacity | 90 Litres |
| Temperature Range | -45°C to -86°C |
| Controller | Microprocessor with PT-100 Sensor |
| Display | 4" LCD Display |
| Internal Dimensions | 400 x 400 x 580 mm |
| External Dimensions | 711 x 877 x 1405 mm |
| Internal Material | SS 304 Stainless Steel |
| External Material | Powder Coated CRCA Steel |
| Insulation | CFC Free Polyurethane Foam |
| Noise Level | < 65 dB(A) |
| Battery Backup | 8 Hours |
| Power Supply | 220-240V, 50Hz, Single Phase |

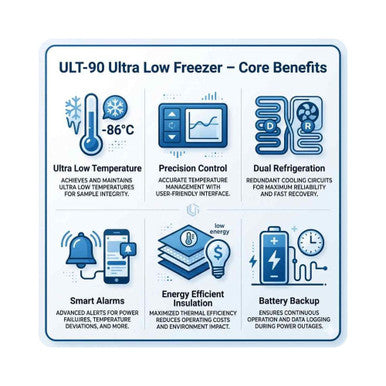

Core Features & Benefits
- Ultra-Low Temperature Stability – Reliable storage down to -86°C for critical samples.
- Advanced Microprocessor Control – Ensures precise temperature regulation with PT-100 sensor.
- Dual Refrigeration System – Faster cooling and enhanced system efficiency.
- Smart Alarm System – Audio-visual alerts for temperature, power failure, and door open.
- Energy Efficient Insulation – Thick polyurethane insulation minimizes thermal loss.
- Battery Backup Protection – Maintains monitoring during power failures.
Frequently Asked Questions
What is the temperature range of the ULT-90 ultra low freezer?
The ULT-90 Ultra Low Freezer operates between -45°C and -86°C, making it ideal for cryopreservation of biological samples, vaccines, and research materials requiring ultra-low temperature storage with stable and precise control.
What applications is this ultra low freezer used for?
This ultra low freezer is widely used in laboratories, pharmaceutical industries, biotechnology research, and hospitals for storing vaccines, enzymes, biological samples, and temperature-sensitive reagents.
Does the freezer have safety alarm systems?
Yes, it includes audio-visual alarms for high/low temperature, power failure, battery status, and door open alerts, ensuring maximum safety and protection for stored samples.
What type of temperature control system is used?
The freezer uses a microprocessor-based temperature control system with a PT-100 sensor, ensuring accurate and stable temperature monitoring for critical laboratory storage applications.
Is there backup support during power failure?
Yes, the unit features an 8-hour battery backup system that supports alarms and monitoring functions during power interruptions, ensuring sample safety and system reliability.
