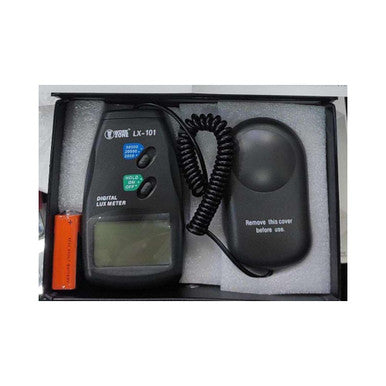

Product Description: WORKZONE Digital Lux Meter (Model LX-101):
The WORKZONE LX-101 Digital Lux Meter is a professional-grade instrument designed for accurate and reliable measurement of illuminance. This device is suitable for a wide variety of applications, including auditing light levels in living quarters, offices, workshops, and industrial environments, ensuring optimal lighting conditions. Its design incorporates advanced technology to deliver precise and easy-to-read measurements.
Key Features and Benefits:
Precision and Accuracy The LX-101 offers precise and easy readout across a wide range of measurement capabilities. It employs an exclusive photo diode and color correction filter, ensuring the spectrum meets C.I.E. photopic standards, resulting in high accuracy in measuring. The measurement accuracy is tested by a standard parallel light tungsten lamp of 2856 K temperature.
Durable and User-Friendly Design This digital lux meter uses LSI-circuit technology which provides exceptional durability and high reliability. The unit is compact, light-weight, and designed for excellent operation, making it pocket size and easy to carry out.
Advanced Sensor Technology A key feature is the separate light sensor, which allows the user to position the sensor optimally for accurate light measurement, ensuring proper light readings even in hard-to-reach areas. The separate sensor is connected to the main instrument via a coiled cable.
Clear Digital Readout The instrument is equipped with an LCD display that provides low power consumption and ensures a clear readout, even when operating in high ambient light environments. The unit also features a built-in low battery indicator.
Operational Details:
The meter operates across three ranges up to 50,000 Lux. Measurement requires selecting the proper range (2,000 Lux, 20,000 Lux, or 50,000 Lux) and facing the light sensor towards the light source. The reading is displayed directly on the screen. The sampling time for the measurement is approximately 2 seconds.
Technical Specifications (WORKZONE LX-101):
|
Specification
|
Detail
|
|
Model Number
|
LX-101
|
|
Type of Product
|
Digital Lux Meter
|
|
Measurement Range
|
0 to 50,000 Lux (3 ranges)
|
|
Range A
|
0 to 1,999 Lux
|
|
Range B
|
2,000 to 19,990 Lux
|
|
Range C
|
20,000 to 50,000 Lux
|
|
Resolution (Range-dependent)
|
1 Lux (Range A), 10 Lux (Range B), 100 Lux (Range C)
|
|
Accuracy (23±5°C)
|
± (5% + 2 digits) across all ranges
|
|
Display
|
Digital LCD (Max. indication 1999)
|
|
Sensor
|
Exclusive photo diode & color correction filter
|
|
Sampling Time
|
2 Seconds
|
|
Over-input Indication
|
Indication of "1"
|
|
Power Supply
|
DC 9V Battery (006P, MN 1604, PP3, or equivalent)
|
|
Operating Temperature
|
0 to 50°C (32 to 122°F)
|
|
Operating Humidity
|
Less than 80% R.H.
|
|
Power Consumption
|
Approx. DC 2 mA
|
