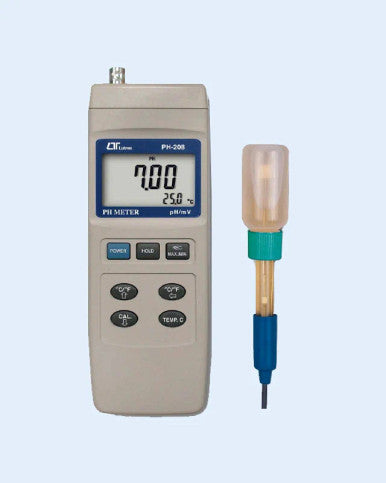

LUTRON pH-208 Professional pH/mV Meter with RS232 Interface

The LUTRON pH-208 is a versatile and professional handheld meter designed for accurate pH and millivolt (mV) measurements in a wide range of applications, from laboratory analysis to field water quality testing.  Its combination of precision, user-friendly features, and data output capability makes it an ideal tool for professionals who require reliable and documentable results. The meter provides dual-parameter functionality, measuring pH across the full 0 to 14 range with a fine 0.01 pH resolution, and mV from -1999 to 1999 mV.  This allows it to be used with an optional ORP (Oxidation-Reduction Potential) electrode to function as a complete ORP meter.  A key feature of the pH-208 is its RS232 computer interface, which enables the user to connect the meter to a PC for data logging, further analysis, and record-keeping, ensuring excellent data management.  LUTRON pH 208 with RS232 Accuracy is ensured through a simple, push-button calibration process for three points (pH 4, 7, and 10). The meter supports both manual temperature compensation (0-100°C) and Automatic Temperature Compensation (ATC) with an optional temperature probe (like the TP-07), which automatically corrects pH readings for temperature variance to ensure the highest accuracy. Housed in a durable, lightweight ABS-plastic case, the pH-208 is built for both portability and longevity.  It features a large, dual-function LCD, a data hold function to freeze readings, and a min/max memory recall.  The universal BNC connector makes it compatible with a wide variety of pH and ORP electrodes.  LUTRON pH 208 with RS232 Key Features:

• Dual Measurement: Measures both pH (0 to 14 pH) and mV (-1999 to 1999 mV).
• RS232 Data Output: Allows for direct connection to a computer for data logging and analysis.
• High Resolution: Displays readings with a precision of 0.01 pH and 1 mV.
• Three-Point Calibration: Easy push-button calibration for pH 4, 7, and 10 ensures linearity and accuracy.
• Temperature Compensation: Supports both manual adjustment and Automatic Temperature Compensation (ATC) with an optional probe.  LUTRON pH 208 with RS232
• Data Functions: Includes data hold and a function to record and recall maximum and minimum readings.
• Auto Power-Off: Saves battery life by automatically shutting down when not in use.
• Universal BNC Connector: Compatible with any standard pH or ORP electrode with a BNC fitting.

Product Specifications LUTRON pH 208 with RS232

Ideal Applications: LUTRON pH 208 with RS232

• Water conditioning and aquariums
• Beverage industry and food processing
• Laboratory and educational use
• Environmental monitoring
• Industrial process control
