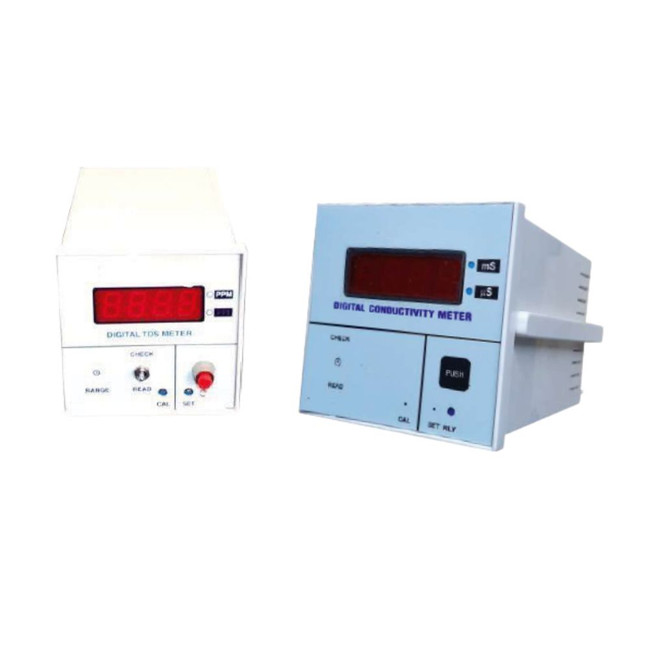

Digital Conductivity TDS/Meter

Digital Conductivity TDS/Meter

The Digital Cond./TDS./SAL. Indicator is designed for continuous online monitoring of Conductivity, Total Dissolved Solids (TDS), or Salinity, depending on the specific model. These indicators feature a 3½ digit LED display with over-range indication for easy reading. The units are designed for panel mounting. They are powered by 230V ± 10% 50 Hz, AC. The cell constant can be adjusted on the display with a multi-turn potentiometer. Digital Conductivity TDS/Meter Here are the technical specifications in a table format for the available models: Digital Conductivity TDS/Meter

Feature	Sky-312 (Conductivity)	Sky-313 (TDS)	Sky-314 (Salinity)
Function	Conductivity (online)	TDS (online)	Salinity (online)
Display Type	3½ digit LED with over range indication	3½ digit LED with over range indication	3½ digit LED with over range indication
Range	0-200.0 uS/cm & 0-2000 uS/cm OR as per requirement	0-200.0 ppm & 0-2000ppm OR as per requirement	0-200.0ppm & 0-2000ppm OR as per requirement
Accuracy	±0.5% of range±1digit	±0.5% of range±1digit	±0.5% of range±1digit
Cell Constant Adjustment	On display with multi turn potentiometer	On display with multi turn potentiometer	On display with multi turn potentiometer
Sensor	Conductivity Cell	TDS Sensor	Salinity Sensor
Power Supply	230V ± 10% 50 Hz, AC	230V ± 10% 50 Hz, AC	230V ± 10% 50 Hz, AC
Mounting	Panel type	Panel type	Panel type
Panel Size	96X96 mm	96X96 mm	96X96 mm
Accessories	Conductivity, TDS , Salinity Sensor, PT-100 Temp. Sensor, Instruction Manual	Conductivity, TDS , Salinity Sensor, PT-100 Temp. Sensor, Instruction Manual	Conductivity, TDS , Salinity Sensor, PT-100 Temp. Sensor, Instruction Manual

Friendly Questions: Digital Conductivity TDS/Meter

• Are you interested in monitoring Conductivity, TDS, or Salinity specifically with this indicator?
• Do you have a particular measurement range in mind for the Conductivity, TDS, or Salinity that you need to monitor?
• Will you be mounting this indicator on a panel, as per its design?
• Would you like to know more about the optional PT-100 Temperature Sensor mentioned in the accessories?
• Do you already have a compatible sensor, or would you need one included with the indicator?
• Is the accuracy specification of ±0.5% of range ±1 digit suitable for your application?
• Do you have any questions about how to adjust the cell constant using the on-display potentiometer?

Let me know if you have any other questions!
