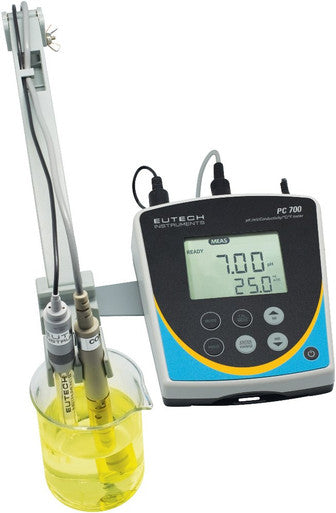

Eutech PC 700 Benchtop Multiparameter Meter
The Eutech PC 700 combines pH, ORP, conductivity, TDS and temperature measurement in one laboratory bench meter. It is designed for users who need several water-analysis parameters without switching between separate meters. The manufacturer kit ECPC70043S includes a pH electrode and a conductivity/ATC probe.
The pH range is -2.00 to 16.00 with 0.01 pH resolution and ±0.01 pH accuracy. Conductivity measurement extends to 200.0 mS in the manufacturer specification table, with ±1% full-scale accuracy. Selectable cell constants and an adjustable TDS factor allow instrument setup for different measurement requirements.
Routine Laboratory Water Analysis
A large display, interchangeable probes and non-volatile memory for 100 data points support routine laboratory use. The manufacturer lists applications including water-quality testing, wastewater, cooling-tower and boiler water, industrial process systems, ecological studies and food processing.
Choose the Correct Probe Configuration
The ECPC70043S kit contains an ECFC7252101B pH electrode, CONSEN9501D conductivity/ATC probe, integral electrode holder and 100/240 VAC adapter. ORP capability requires a suitable ORP electrode; the manufacturer kit list does not include one. Specify any additional electrode requirements when requesting a quotation.
Temperature compensation can be automatic with the supplied cell or manual. The manufacturer's supplied-cell compensation range is 0 to 80 °C; the meter temperature range is 0 to 100 °C. Match the probe and sample conditions to your procedure before selecting the configuration.
SciSpectrum Lab Essentials supplies laboratory instruments as a reseller. Quote Sci SKU EUT-MTP-ECPC70043S and manufacturer kit ECPC70043S, together with sample type, measurement parameters and required accessories.
Technical sources: Eutech 700 Series brochure, pages 2, 5 and 7, and the official PC 700 instruction manual. All three documents are available in Downloads.
PC 700 Technical Specifications
| pH range / resolution | -2.00 to 16.00 pH / 0.01 pH |
| pH accuracy | ±0.01 pH |
| pH calibration | Up to 5 points; USA and NIST buffer sets |
| ORP / relative mV range | ±2000 mV |
| ORP resolution | 0.1 mV within ±199.9 mV; 1 mV beyond |
| ORP accuracy | ±0.2 mV within ±199.9 mV; ±2 mV beyond |
| Conductivity range | 0.0 µS to 200.0 mS (manufacturer table units) |
| Conductivity resolution | 0.01 / 0.1 / 1 µS; 0.01 / 0.1 mS |
| Conductivity / TDS accuracy | ±1% full scale |
| Conductivity calibration | Automatic presets or manual up to 5 points; maximum one per range |
| Cell constant | 0.1, 1.0 or 10.0 selectable |
| TDS upper range | 100.0 ppt at factor 0.5; 200.0 ppt at factor 1.0; lower endpoint unclear in brochure |
| TDS factor / calibration | 0.40 to 1.00 adjustable; manual up to 5 points, one per range |
| Temperature range | 0.0 to 100.0 °C / 32.0 to 212.0 °F (meter) |
| Temperature resolution / accuracy | 0.1 °C / 0.1 °F; ±0.5 °C / ±0.9 °F |
| Temperature coefficient | 0.00 to 10.00% per °C |
| Normalization temperature | 15.0 to 30.0 °C adjustable |
| Temperature compensation | Automatic or manual; 0 to 80 °C with supplied cell |
| Memory | 100 data points; non-volatile |
| Manufacturer kit | ECPC70043S; part no. 01X543601 |
| Applications | Water-quality testing; wastewater; cooling-tower water; boiler water; industrial process systems; ecological studies; food processing |
Features and Practical Benefits
- Multiple laboratory parameters: Measure pH, ORP, conductivity, TDS and temperature using appropriate electrodes.
- 100-point memory: Store measurements in non-volatile memory for later review.
- Up to five-point pH calibration: Select USA or NIST buffers to suit your laboratory procedure.
- Selectable cell constants: Choose K=0.1, 1.0 or 10.0 for the appropriate conductivity electrode.
- Adjustable TDS factor: Set the conversion factor between 0.40 and 1.00.
- Automatic or manual calibration: Conductivity calibration supports preset standards or manually entered values.
- Bench-friendly kit: Included electrode holder and interchangeable probes help organise the measurement setup.
Manufacturer Kit Contents
PC 700 meter, ECFC7252101B pH electrode, CONSEN9501D conductivity/ATC probe, integral electrode holder and 100/240 VAC adapter. An ORP electrode is not listed in this kit. Confirm the final supplied configuration in your quotation.
PC 700 Frequently Asked Questions
What does the Eutech PC 700 measure?
It measures pH, ORP, conductivity, TDS and temperature with appropriate electrodes.
Which probes come with ECPC70043S?
The manufacturer lists the ECFC7252101B pH electrode and CONSEN9501D conductivity/ATC probe, together with an electrode holder and adapter.
Is an ORP electrode included?
No ORP electrode is listed in the standard ECPC70043S kit. Request a suitable electrode separately when ORP measurement is required.
What is the pH accuracy?
The manufacturer specifies ±0.01 pH accuracy, 0.01 pH resolution and a -2.00 to 16.00 pH range.
Can the TDS conversion factor be adjusted?
Yes. The TDS factor is adjustable from 0.40 to 1.00. Select the value appropriate for your sample and laboratory procedure.
How many readings can be stored?
The PC 700 has non-volatile memory for up to 100 data points.
Where can I find calibration and electrode-care instructions?
Download the official PC 700 operating manual from the Downloads tab for calibration, setup, maintenance and troubleshooting.
How do I request the correct PC 700 kit?
Contact SciSpectrum with EUT-MTP-ECPC70043S, sample type, required parameters and additional electrode requirements so the configuration can be confirmed.
