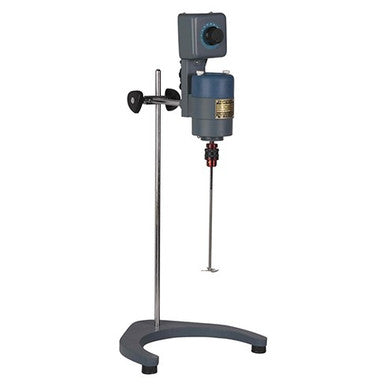

REMI RQM-122/R High-Speed Mechanical Stirrer
The REMI RQM-122/R is a robust, direct-drive mechanical stirrer designed for high-speed mixing applications in the laboratory. It is an all-purpose, mountable unit engineered to meet the demands of various stirring operations, particularly for low-viscosity liquids like water. With its powerful motor and wide speed range, this overhead stirrer is a dependable workhorse for research, quality control, and general lab work.
Powered by a reliable 1/20 HP AC/DC motor, the RQM-122/R delivers the performance needed to handle stirring capacities of up to 7 liters. Its key feature is the impressive high-speed range, which is adjustable from 800 to 4000 RPM. Speed is controlled via a stepless rheostat regulator, allowing for smooth adjustments to match the requirements of your specific application. Please note that this model does not include a digital RPM indicator. MECHANICAL STIRRERS REMI RQM122 R
The unit is supplied with a 250 mm long stainless steel stirring shaft with a 6 mm diameter. It comes fitted with a 38 mm pitched fan impeller, designed for efficient axial flow. A chuck is included for securely holding the shaft, which also allows for the easy interchangeability of different stirrer paddles to suit various tasks. This model is designed to be mounted on a stand (sold separately) for stable operation. MECHANICAL STIRRERS REMI RQM122 R
Key Specifications: MECHANICAL STIRRERS REMI RQM122 R
- Model: RQM-122/R
- Stirring Capacity: Up to 7 Liters (of water)
- Motor: 1/20 HP AC/DC
- Speed Range: 800 - 4000 RPM
- Speed Control: Rheostat (analog, non-digital)
- Stirring Shaft: 6 mm diameter x 250 mm length
- Impeller Type: Pitched Fan, 38 mm diameter
- Mounting: Mount-on type MECHANICAL STIRRERS REMI RQM122 R
Product details
|
Impeller Diameter |
38 mm |
|
Impeller Type |
Pitched Fan |
|
Motor Type |
AC/DC 1/20 HP |
|
Stirring Shaft * Length (mm) |
250 mm |
|
Max. Stirring Capacity |
7 L |
|
Brand |
Remi |
|
Model Number |
RQM 122/R |
|
Speed Range [rpm] |
800 - 4000 rpm |
