REMI RQ-128D and RQ-128D D

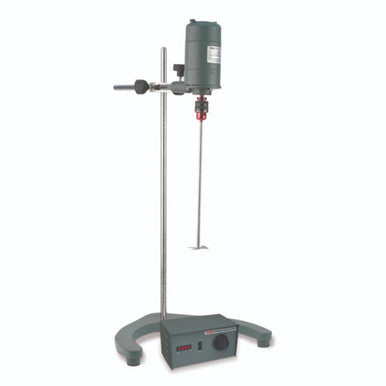

1. REMI RQ-128D Low-Speed Geared Stirrer
The REMI RQ-128D is a light-duty, high-torque laboratory stirrer designed specifically for mixing viscous materials. Its geared motor provides the consistent power needed to handle substances like creams, pastes, ointments, and other thick slurries where direct-drive stirrers would fail. It is an excellent tool for formulation, research and development, and small-scale quality control.
Powered by a 1/20 HP geared PMDC motor, this unit delivers high torque at a low speed range of 50 to 150 RPM. This ensures that even dense materials can be mixed smoothly and continuously without stalling the motor. The stirrer is designed to handle capacities up to 3 kg. REMI RQ-128D and RQ-128D D
The RQ-128D features a remote speed regulator, often with a digital RPM display, allowing for precise speed control and safe operation away from the mixing vessel. It is supplied with a robust 8 mm diameter, 310 mm long stainless steel shaft, and is typically used with paddle or anchor-type impellers (sold separately) for effective mixing of viscous media.
Key Specifications: REMI RQ-128D and RQ-128D D
- Model: RQ-128D
- Application: Light-duty, high-torque mixing
- Stirring Capacity: Up to 3 kg
- Motor: 1/20 HP Geared PMDC
- Speed Range: 50 - 150 RPM
- Speed Control: Remote with digital RPM display
- Stirring Shaft: 8 mm diameter x 310 mm length
- Mounting: Mount-on type (stand required)
2. REMI RQ-128D/D Heavy-Duty Geared Stirrer
The REMI RQ-128D/D is a powerful, heavy-duty geared stirrer built for pilot plants, scale-up processes, and small-batch manufacturing. It is engineered to handle large quantities of highly viscous and dense materials, making it suitable for industrial R&D and production environments. REMI RQ-128D and RQ-128D D
At its core is a formidable 1/2 HP geared motor—ten times more powerful than the light-duty model—that delivers immense torque. This power allows it to effortlessly mix batches up to 20 kg. The variable speed range of 50 to 280 RPM provides the flexibility to handle a wide variety of materials and mixing requirements.
Like its smaller counterpart, the RQ-128D/D uses a remote digital speed regulator for precise and safe control. To handle the significant torque and larger batch sizes, it is equipped with a very durable 12 mm diameter, 450 mm long stainless steel shaft, designed for use with large, heavy-duty anchor or paddle impellers.
Key Specifications: REMI RQ-128D and RQ-128D D
- Model: RQ-128D/D
- Application: Heavy-duty, pilot-scale mixing
- Stirring Capacity: Up to 20 kg
- Motor: 1/2 HP Geared Motor
- Speed Range: 50 - 280 RPM
- Speed Control: Remote with digital RPM display
- Stirring Shaft: 12 mm diameter x 450 mm length
- Mounting: Heavy-duty mount-on type (robust stand required)
Comparison: RQ-128D vs. RQ-128D/D
| Feature | REMI RQ-128D | REMI RQ-128D/D |
|---|---|---|
| Application Scale | Light-Duty / Laboratory | Heavy-Duty / Pilot Plant |
| Motor Power | 1/20 HP | 1/2 HP (10x more powerful) |
| Stirring Capacity | 3 kg | 20 kg |
| Speed Range | 50 - 150 RPM | 50 - 280 RPM |
| Shaft Diameter | 8 mm | 12 mm (More robust) |
| Shaft Length | 310 mm | 450 mm (For larger vessels) |
Summary: Which One to Choose? REMI RQ-128D and RQ-128D D
- Choose the RQ-128D for laboratory-scale development, R&D, and quality control involving small batches (up to 3 kg) of viscous materials like creams, gels, or pastes.
- Choose the RQ-128D/D for pilot-scale production, process scale-up, and manufacturing small batches (up to 20 kg) of highly viscous or dense products. Its powerful motor and robust construction are designed for more demanding, industrial applications.
