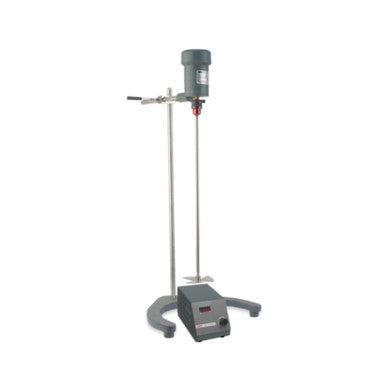

Remi RQ-129/D Mechanical Stirrer (50 Ltr):
The Remi RQ-129/D is a premium quality Direct Drive Stirrer designed to meet the rigorous demands of laboratories requiring wide flexibility and precise stirring operations. Manufactured by Remi, this model is part of their PMDC Lab Stirrers range, utilizing a Permanent Magnet DC (PMDC) motor for powerful and reliable stirring performance.
Product Overview and Applications:
The RQ-129/D is classified as a Direct Drive Stirrer, ideal for day-to-day laboratory use with aqueous and low viscosity liquids such as water and light oils. It is routinely used for applications including routine laboratory work, research and development, QA analysis, and sample preparations. This model is also suitable for heavy-duty stirring required in pilot plants, bench scale processes, and small batch production.
Key Performance Features:
High Precision Digital Control The stirrer features a digital speed indicator, which provides essential speed readouts, valuable for applications where process validation and reproducibility are required. It includes a stepless electronic speed regulator with a digital display, offering uniform speed control across its operating range. Furthermore, models are available with a digital speed indicator for speed indication and process validation.
Robust and Durable Mechanism The unit is equipped with a powerful PMDC motor, guaranteeing reliable performance even during continuous operation. The direct drive mechanism ensures smooth stirring, and the stirrer is built with durable construction, guaranteeing consistent performance over time in demanding lab environments. It possesses high torque capability, capable of handling challenging stirring tasks.
Design and Material Quality The RQ-129/D features a sturdy and compact design that offers excellent stability during operation. The stirring shaft is constructed from SS 316, while the retort rods are made of SS 304. A chuck is included for the easy interchangeability of the shaft.
Technical Specifications (Model RQ-129/D):
|
Feature
|
Specification
|
|
Model No.
|
RQ-129/D
|
|
Type of Product
|
Direct Drive Stirrer
|
|
Stirring Capacity (Max Volume)
|
50 Litres (L)
|
|
Stirring Fluid (Type of Fluid)
|
Water / Light Oil
|
|
Motor Type
|
PMDC
|
|
Speed Range (Min)
|
100 rpm
|
|
Speed Range (Max)
|
1400 rpm
|
|
Digital Speed Indicator
|
Yes
|
|
Stirring Shaft Diameter (Ǿ)
|
10 mm
|
|
Stirring Shaft Length
|
550 mm
|
|
Impeller Type
|
Pitched Fan
|
|
Impeller Diameter (Ǿ)
|
100 mm
|
|
Stirring Shaft Material
|
SS 316
|
|
Retort Rod Material
|
SS 304
|
|
Weight
|
20 kg
|
|
Country of Origin
|
India
|
