Eutech PH 1710 pH/mV Bench Meter (Cat No EBPH171003)
EUTECH
₹65,000.00
(No reviews yet)
Write a Review
EUTECH
Eutech PH 1710 pH/mV Bench Meter (Cat No EBPH171003)
Eutech PH 1710 pH/mV Bench Meter (Cat No EBPH171003)

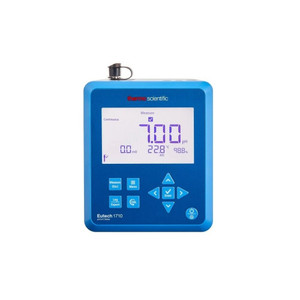

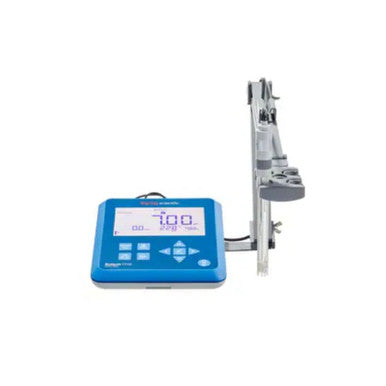

The Thermo Scientific Eutech 1710 pH/mV Bench Meter is a robust and user-friendly analytical instrument designed for precise pH, mV (ORP), and temperature measurements in laboratories and near production environments. This model, specifically the EBPH171003, is offered as a low-maintenance kit, making it an ideal, cost-effective choice for routine testing and demanding applications where ease of use and consistent accuracy are paramount.
Key Features and Benefits
• Simultaneous Measurement: Capable of measuring pH, mV, and temperature simultaneously, providing comprehensive data from a single device.
• Intuitive Display: Features a large, bright 5-inch backlit LCD display that ensures readings are easy to view and record, even in varying lighting conditions.
• Space-Saving Design: Its compact footprint helps to optimise valuable bench space in your laboratory.
• Enhanced Accuracy: Supports one-to-five-point pH calibrations and a one-point relative mV (RmV) calibration, utilising automatic buffer recognition or manual entry for precise results.
• Temperature Compensation: Allows for automatic or manual temperature compensation with a one-point offset ATC temperature probe calibration, ensuring accuracy across different sample temperatures.
• Robust Data Management: Automatically saves up to 500 data points with date and time stamps, supporting GLP/GMP reporting and providing full traceability. Calibration logs for pH, RmV, and temperature are also viewable.
• Secure Data Transfer: Enables critical data to be exported to a computer or printer via its communication port, facilitating long-term record-keeping and analysis.
• Non-Volatile Memory: Preserves all settings and data even in the event of power loss, providing peace of mind.
• User Guidance: On-screen icons indicate measurement stability status, building confidence in your readings. A pH electrode condition icon helps monitor electrode performance.
• Durable Construction: Designed with an IP54 enclosure, making it resistant to splashes and dust.

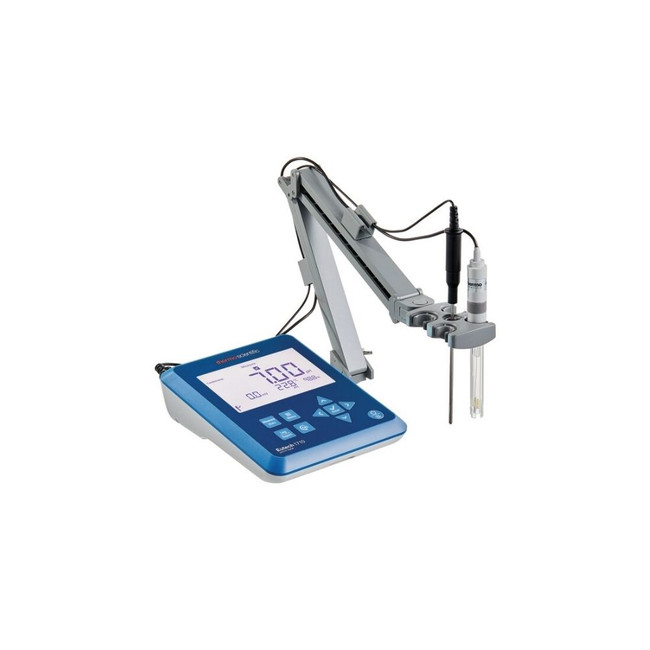

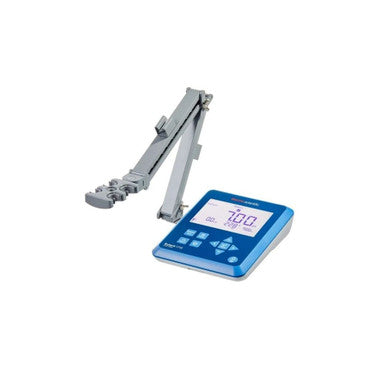

• Integrated Electrode Holder: A meter-attached stand facilitates easy and precise positioning of the sensor in samples.
• Reliable Performance: Backed by a 3-year warranty on the meter, ensuring long-term reliability.
Included in the Low-Maintenance Kit (EBPH171003)
The EBPH171003 kit is specifically tailored for low-maintenance operation and includes:
• Eutech 1710 pH/mV bench meter
• Gel-filled plastic-body double junction pH electrode
• ATC (Automatic Temperature Compensation) probe
• pH buffer and rinsing solutions
• Storage solution
• PC cable
• Meter-attached electrode stand
• Universal power adapter (100-240V, 50-60Hz) with interchangeable wall plugs for global compatibility (EU, UK, US/Japan, AUS, and China outlets).

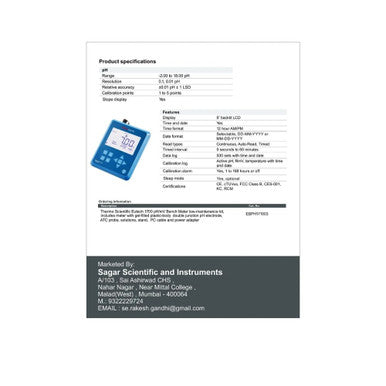

Technical Specifications
|
Parameter
|
Specification
|
|
pH
|
|
|
Range
|
–2.00 to 18.00 pH
|
|
Resolution
|
0.1, 0.01 pH
|
|
Relative Accuracy
|
±0.01 pH ±1 LSD
|
|
Calibration Points
|
1 to 5 points
|
|
Calibration Method
|
Automatic buffer recognition with manual buffer entry option
|
|
Calibration pH Buffer Sets
|
USA (pH 1.68, 4.01, 7.00, 10.01, 12.45), NIST (pH 1.68, 4.01, 6.86, 9.18, 12.45)
|
|
Slope Display
|
Yes
|
|
mV/RmV
|
|
|
Range
|
±2000.0 mV
|
|
Resolution
|
0.1 mV
|
|
Relative Accuracy
|
±0.2 mV or ±0.05% of the reading, whichever is greater
|
|
Calibration Points
|
1 point
|
|
Offset Adjustment
|
Up to ±250 mV
|
|
Temperature
|
|
|
Range
|
–5.0 to 105.0 °C
|
|
Resolution
|
0.1 °C
|
|
Relative Accuracy
|
±0.3 °C
|
|
Input
|
Manual or automatic with ATC probe
|
|
Calibration Points
|
1 point
|
|
Offset Adjustment
|
Up to ±5.0 °C
|
|
Meter Features
|
|
|
Display
|
5-inch backlit segmented LCD
|
|
Time and Date
|
Yes (Selectable DD-MM-YYYY or MM-DD-YYYY, 12 hour AM/PM format)
|
|
Read Types
|
Continuous, Auto-Read, Timed (5 seconds to 60 minutes interval)
|
|
Data Log
|
500 sets with time and date
|
|
Calibration Log
|
Active pH, RmV, temperature with time and date
|
|
Calibration Due Alarm
|
Yes, 1 to 168 hours or off
|
|
Sleep Mode
|
Yes, optional
|
|
Self-Test
|
Automatic with startup
|
|
Memory
|
Non-volatile
|
|
Input
|

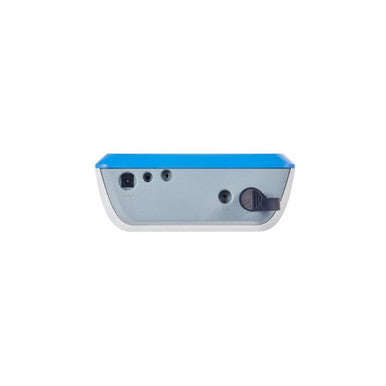

BNC for pH/RmV, 2.5 mm phono plug for ATC
|
|
Data Output
|
Computer or printer (CSV or print format)
|
|
Warranty
|
3 years (meter)
|
|
Certifications
|
CE, cTUVus, FCC Class B, CES-001, KC, RCM
|
|
Enclosure
|
IP54
|
|
Power
|
100-240 VAC, 50-60Hz, 9 DC adapter, 1.3A
|
|
Dimensions (L x W x H)
|
198.3 mm x 155.2 mm x 61.7 mm (7.81 x 6.11 x 2.43 in.)
|
|
Weight
|
700 grams (1.54 lb.)
|
|
Environmental Conditions
|
|
|
Altitude
|
Up to 2,000 metres
|
|
Operating Temperature
|
5°C to 45°C
|
|
Operating Relative Humidity
|
5 to 85%, non-condensing
|
|
Storage Temperature
|
-20°C to 60°C
|
|
Storage Relative Humidity
|
5 to 85%, non-condensing
|
|
Mains Fluctuation
|
±10% of range (100-240VAC)
|
|
Installation Category
|
II
|
|
Pollution Degree
|
2
|
|
Protection Class
|
III
|
